Phoenix Contact 2818148
$
55.15
$
42.42
Taxes and shipping calculated at checkout
Title
Please select combo product attributes
The combo subtotal is $,SAVE
$
Unavailable
Quantity
-
+
ADD TO CART
BUY IT NOW
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | CN-UB-280DC-SB |
| Approvals | UL Listed, cUL Listed, cULus Listed, UL Listed, EAC, EAC, UL Listed |
| Color | Natural |
| Current Rating | 5 A |
| Current, Surge | 20 kA |
| Dimensions | 25mm L x 25mm W x 72mm H |
| For Use With | Data/Comm |
| Height | 2.835" (72mm) |
| IP Rating | IP55 |
| Mounting Type | Inline |

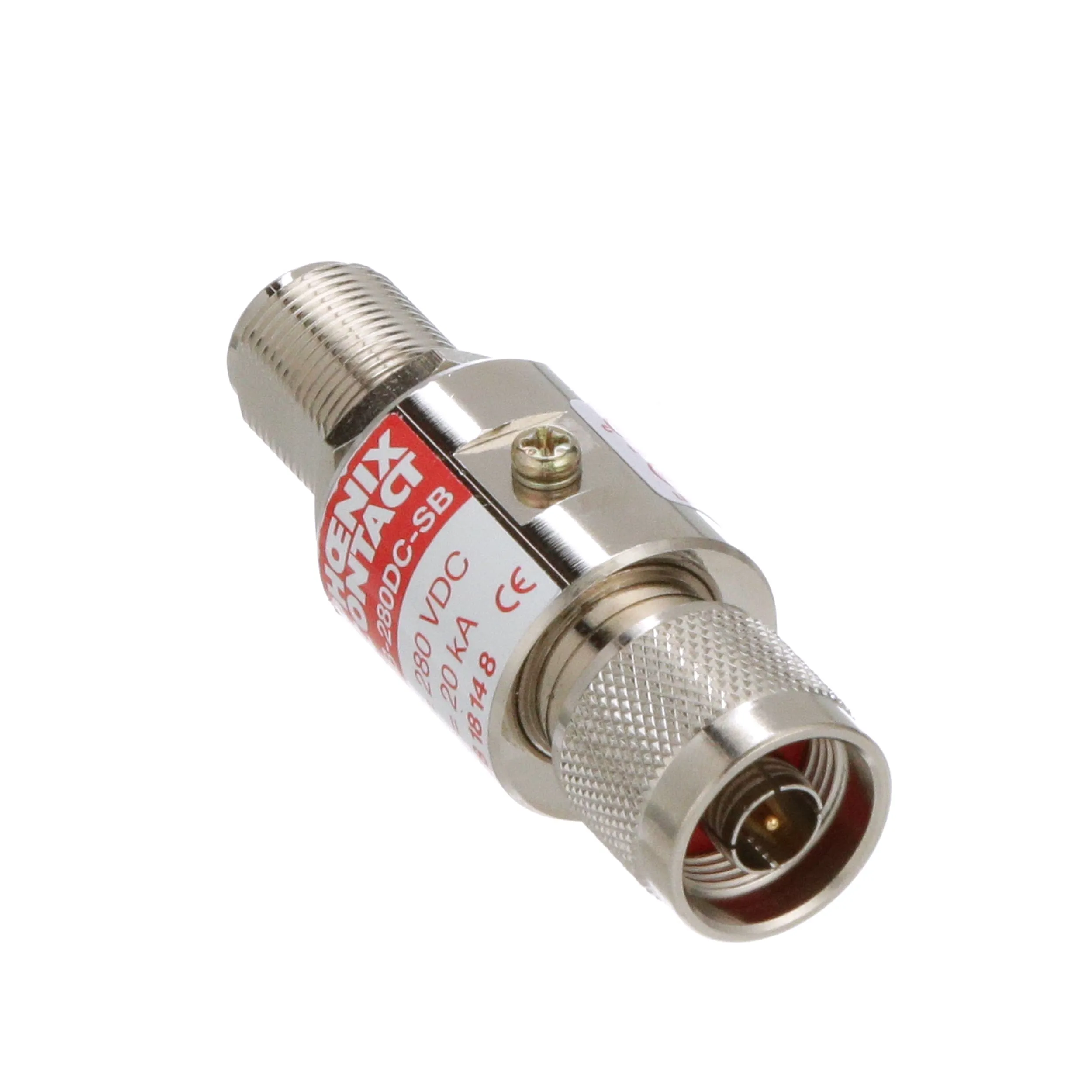

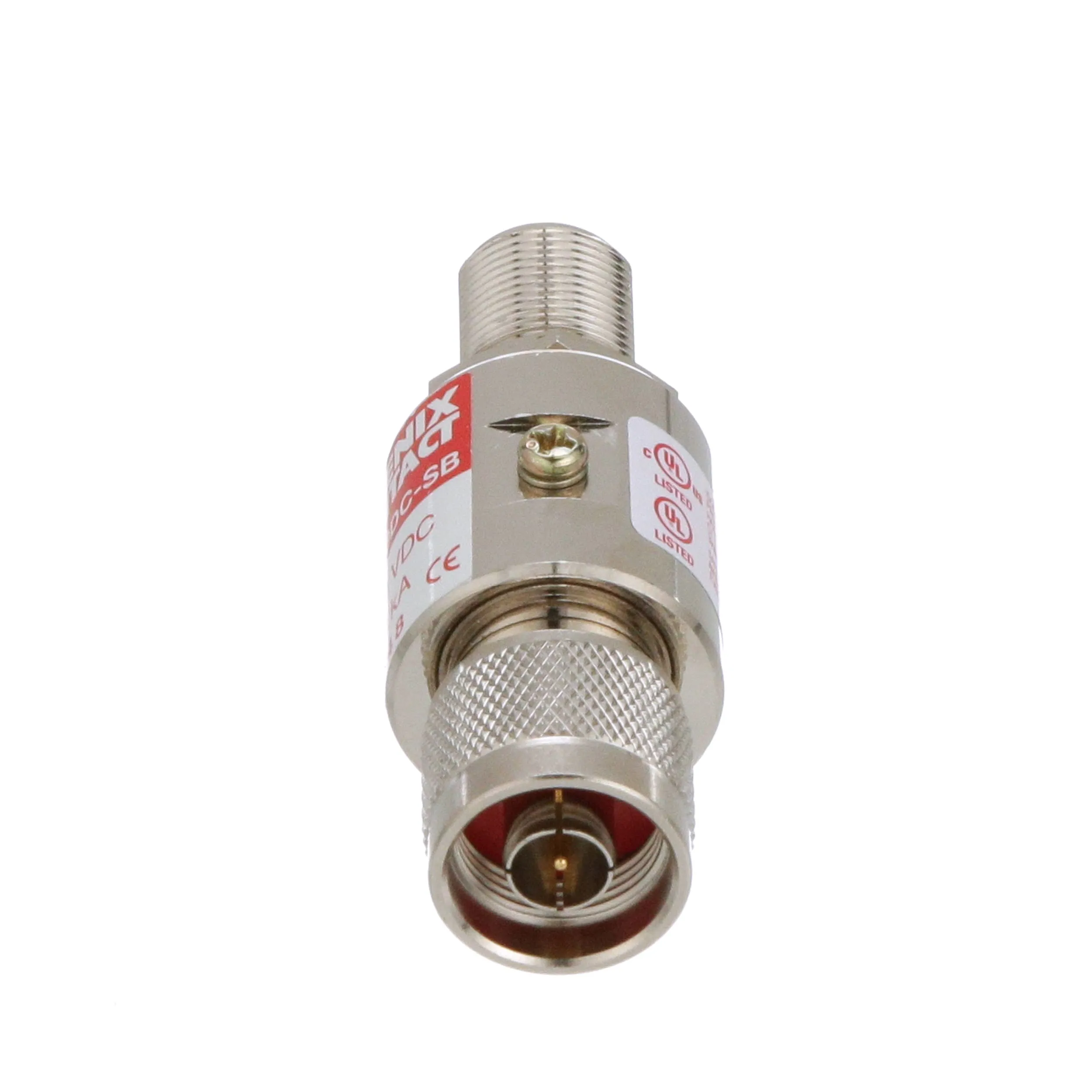

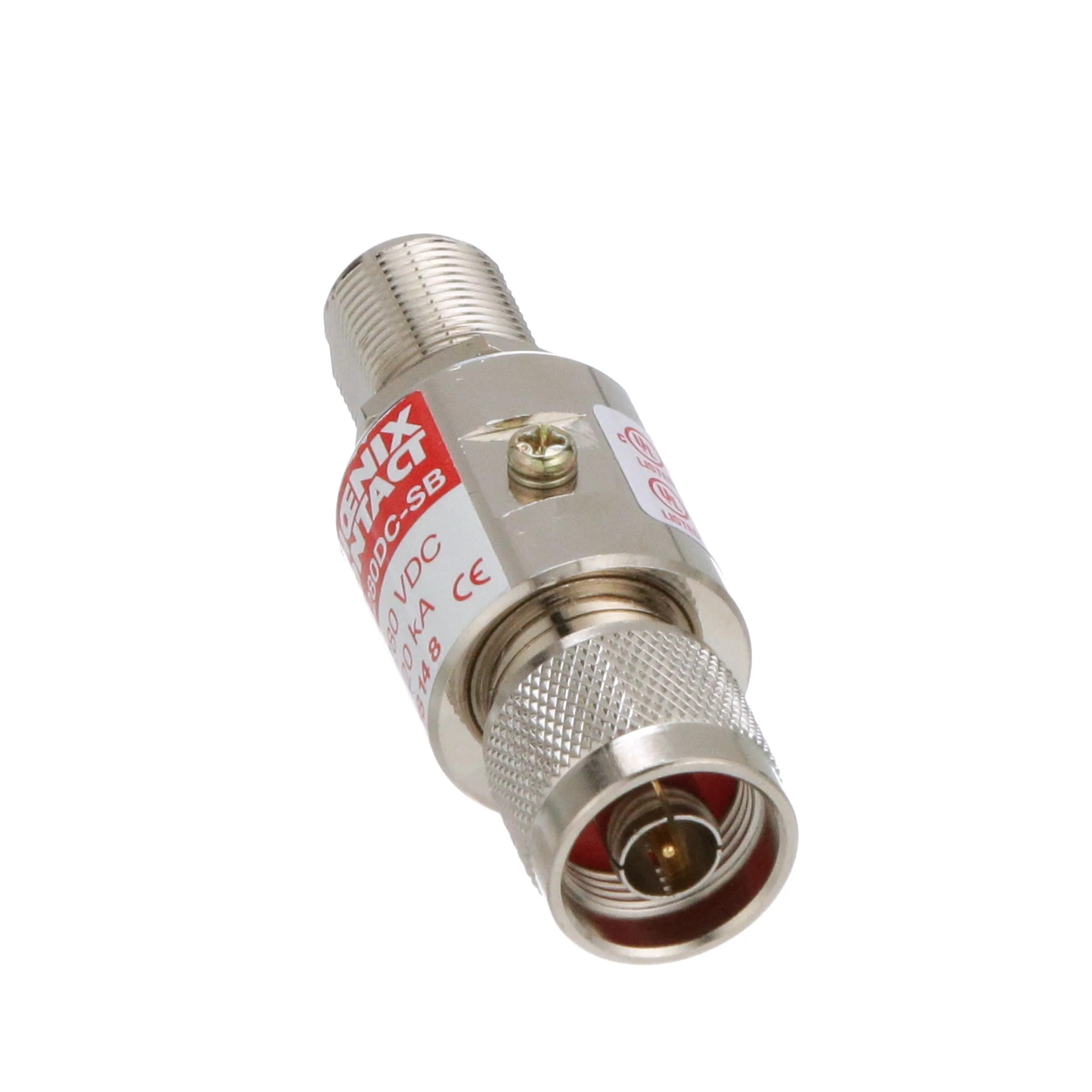

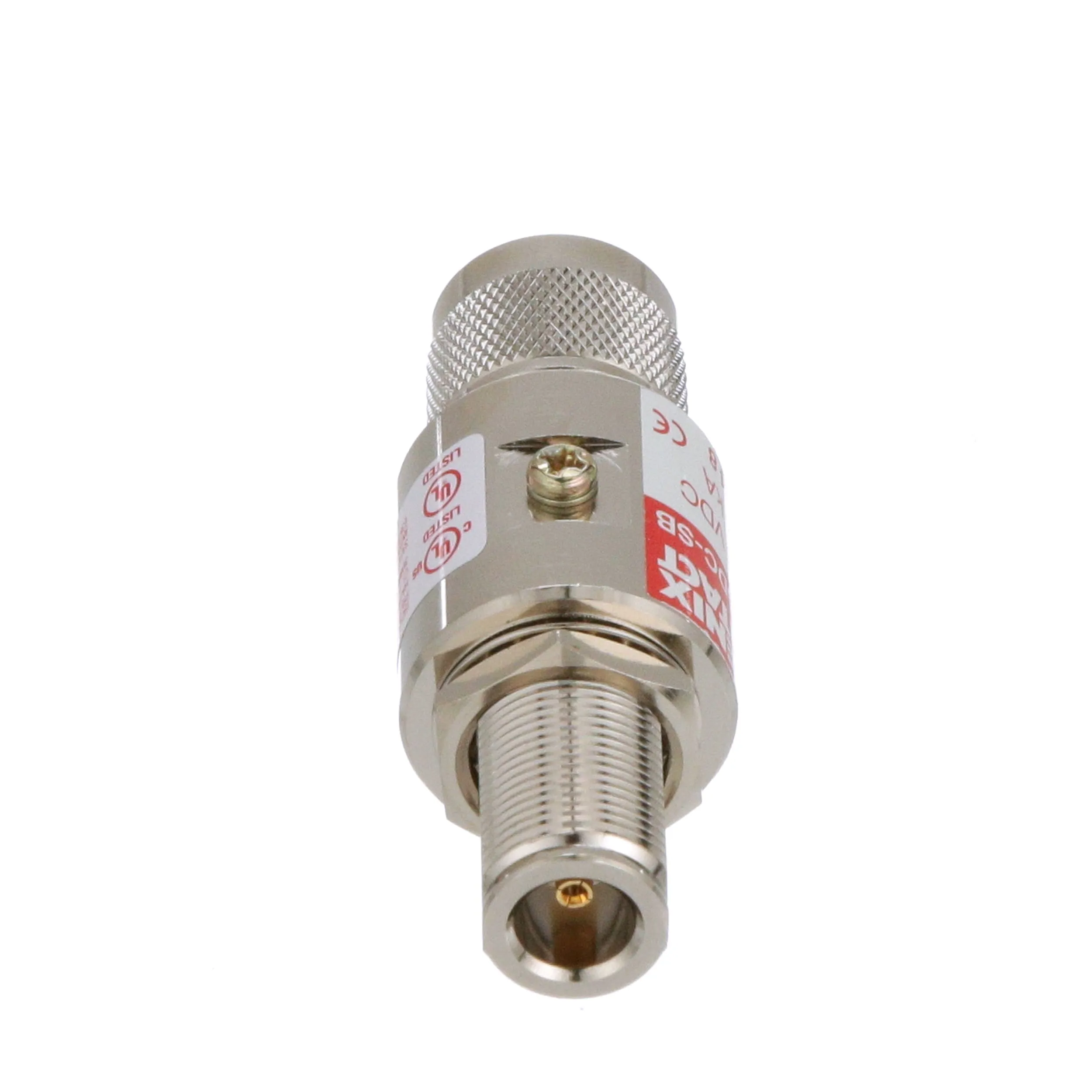

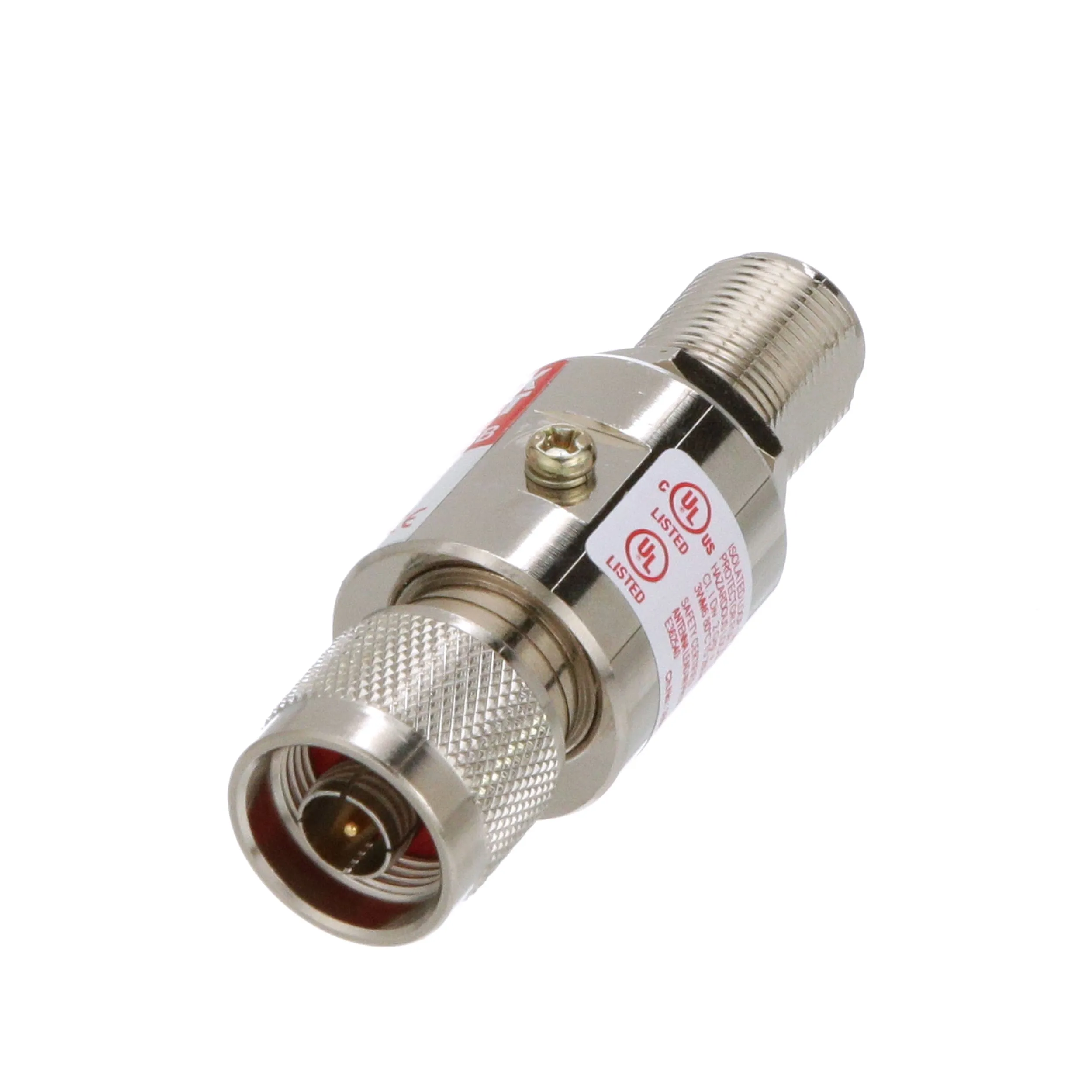

| Product Header | Attachment Plug with Replaceable Surge Protector |
| Series | |
| Standards | IEC, DIN Approved |
| Termination | N-Male/Female |
| Type | Network |
| UPC Code | 4017918148379 |
| Voltage Rating | 280 VDC |
| Voltage, Operating | 280 VDC |
Overview
Outdoor antenna and cabling are at risk to surge damage, since they are directly exposed to lighting events. Monitoring and controlling your processes is reliable with surge protection for point to point, and multipoint to point industrial radios. Both direct and indirect lightning events affect radio and video systems. Static charge build-up creates additional danger because it reaches thousands of volts.
